TC5081P
Description:
The TC5081P is an integrated circuit in a 9-Lead SIP type package consisting
of a digital phase comparator and an amplifier. Three state outputs connected
to low pass filter (using an internal amplifier) will produce DC voltage
to control a VCO.
Low state pulses appear on phase out as long as
the loop is unlocked and thses can be utilized as lock indicator.
| Pin | Name | Description |
|---|---|---|
| 1 | AOUT | Amplifier Output |
| 2 | AIN | Amplifier Input |
| 3 | PD | Phase Detector Output |
| 4 | Phase Output | |
| 5 | VCC | Suply Voltage 4,5-8 Volt |
| 6 | NC | No Conection |
| 7 | S | Reference Frequency Input |
| 8 | R | VCO Frequency Input |
| 9 | GND | Ground |

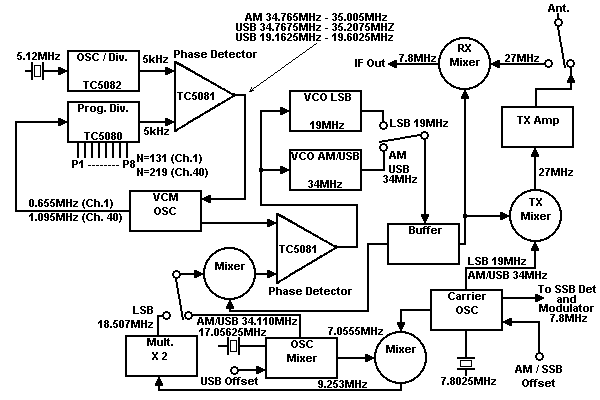

TC5080 / TC5081 - SSB Chassis
